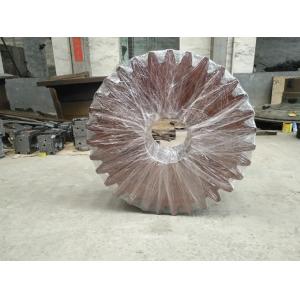

Precision Bolt on Gear with 20-Degree Pressure Angle 150mm Diameter / Accuracy
Product Description:
Production of Large Forged and Cast Gears
At our manufacturing facility, we have the capabilities to produce a range of large forged and cast gears tailored to our customers' exact specifications.
Additional Production Services
Our team of experts is equipped to handle various production requests, including gear grinding, surface hardening, carburizing and quenching, nitriding and quenching, and more. These additional services allow us to provide our customers with fully customized products that meet their unique requirements.
Customized Solutions
We take pride in our ability to deliver high-quality solutions that meet the needs of various industries and sectors. Whether you need standard or custom-made gears, we have the expertise and resources to meet your demands.
Features:
- Product Name: Large module gear
- Shape: Circular
- Pitch Diameter: 150 Mm
- Application: Gearbox
- Accuracy: High
- Material: Metal
- Manufactured by: Rui da
- Also known as: Big ring gear
Technical Parameters:
| Pressure Angle: |
20 Degrees |
| Material: |
Metal |
| Mounting Type: |
Bolt-on |
| Pitch Diameter: |
150 Mm |
| Face Width: |
50 Mm |
| Shape: |
Circular |
| Size: |
Large |
| Module: |
Large |
| Teeth Number: |
15 |
| Type: |
Module Gear |
Applications:
Firstly, we have the capability to produce a variety of large module gears in accordance with specified drawings. This includes utilizing different materials such as carbon and alloy steel, adhering to various standards such as ASTM, DIN, EN, GOST, JIS and others, and manufacturing through either forging or casting processes.
The module of gear we can create ranges from 1 to 40, with a maximum gear grinding module of 24. Additionally, the maximum diameter of the gear wheel that can be produced is 8000mm, while the maximum diameter of spiral gear is 2000mm. This is complemented by a maximum gear shaft length of 5000mm.
Moreover, we offer an OEM service based on the specific drawings and requirements of our customers. Our manufacturing process also includes heat treatment, through the method of case hardening, which further enhances the durability of the gear.
Lastly, we are able to produce gears with different tooth shapes, such as spur gears, helical gears, drum gears, bevel gears, and spiral bevel gears.
